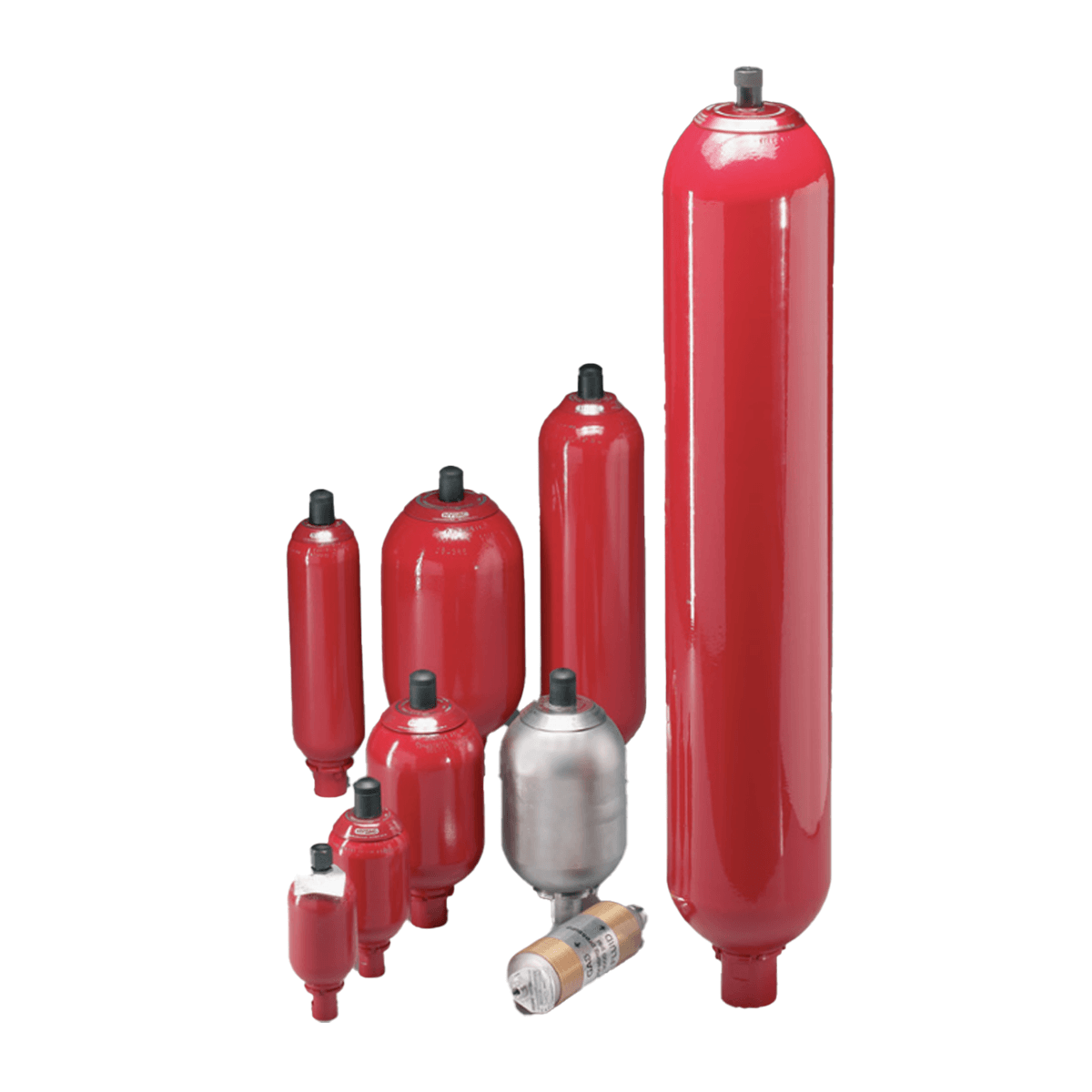

Accumulator SBB330-50A1/112U-330A
Accumulator SBB330-50A1/112U-330A
Normale prijs
€2.565,64 EUR
Normale prijs
Aanbiedingsprijs
€2.565,64 EUR
Belastingen inbegrepen.
Aantal
Kan beschikbaarheid voor afhalen niet laden
Specifications
Type |
Bladder Accumulator |
Model Code Description |
SB330-54A1/112U-210C |
Fluid Port Connection |
SAE (ANSI B1.1) |
Weight |
150 kg330 lb |
Shell Material |
Carbon Steel |
Series |
SB330 |
Connection Size |
1 7/8-12 UN (SAE-24) |
Repairable |
Yes |
Design |
Standard (Bottom Repairable) |
Line Connection |
Threaded |
Gas Port |
Standard Model, HYDAC Gas Valve Version 4 (8V1 - ISO 4570) |
Fluid Port Material |
Carbon Steel |
Country of Installation |
PED/CE |
Typical Fluids |
Mineral Oil |
Operating Temperature [Min] |
5 ºF |
Operating Temperature [Max] |
180 ºF |
Maximum Discharge Flow Rate Q |
240 gpm |
Maximum Working Pressure |
210 bar3000 psi |
Size |
15 gal54 L |
Effective Gas Volume |
13.87 gal3205 in³ |
Typical Pressure |
3000 psi |
Bladder Compound |
Buna N (NBR) |
BUn |
EA |
Division |
ACCUMULATORS |
Product Group Family |
BLADDER ACCUMULATORS |
Product |
BLADDER ACCUMULATORS |
Dimensions
Diameter D |
9.1 in231 mm |
Dimension A |
78.3 in1990 mm |
Dimension B |
3.1 in80 mm |
Dimension C |
2.3 in58 mm |
Diameter E |
3.0 in76 mm |
Thread-J Size (Society of Automotive Engineers (SAE)) |
1 7/8-12 UN (SAE-24) |
Thread-J Size (National Pipe Thread Fine (NPTF), British Standard Parallel Pipe (BSPP)) |
2 in |
